Doosan Puma 3100LY
or copy link
|Chuck size||12 inch|
|Bar Capacity||102 mm|
|Max. Turning Diameter||420 mm|
|Max. Turning Length||1285 mm|
|X Axis Rapid Traverse||30 m/min|
|Z Axis Rapid Traverse||30 m/min|
|Max. Spindle Speed||2800 r/min|
|Max. Spindle Power||22 kW|
|Max. Spindle Torque||1123 N·m|
|No. of tool station||24|
|Rotary Tool r/min||5000 r/min|
|X Axis Travel distance||293 mm|
|Y Axis Travel distance||130 mm|
|Z Axis Travel distance||1350 mm|

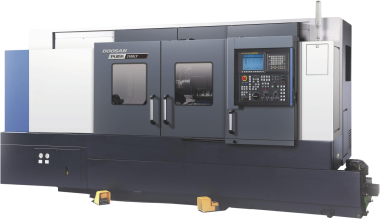

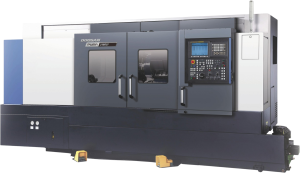

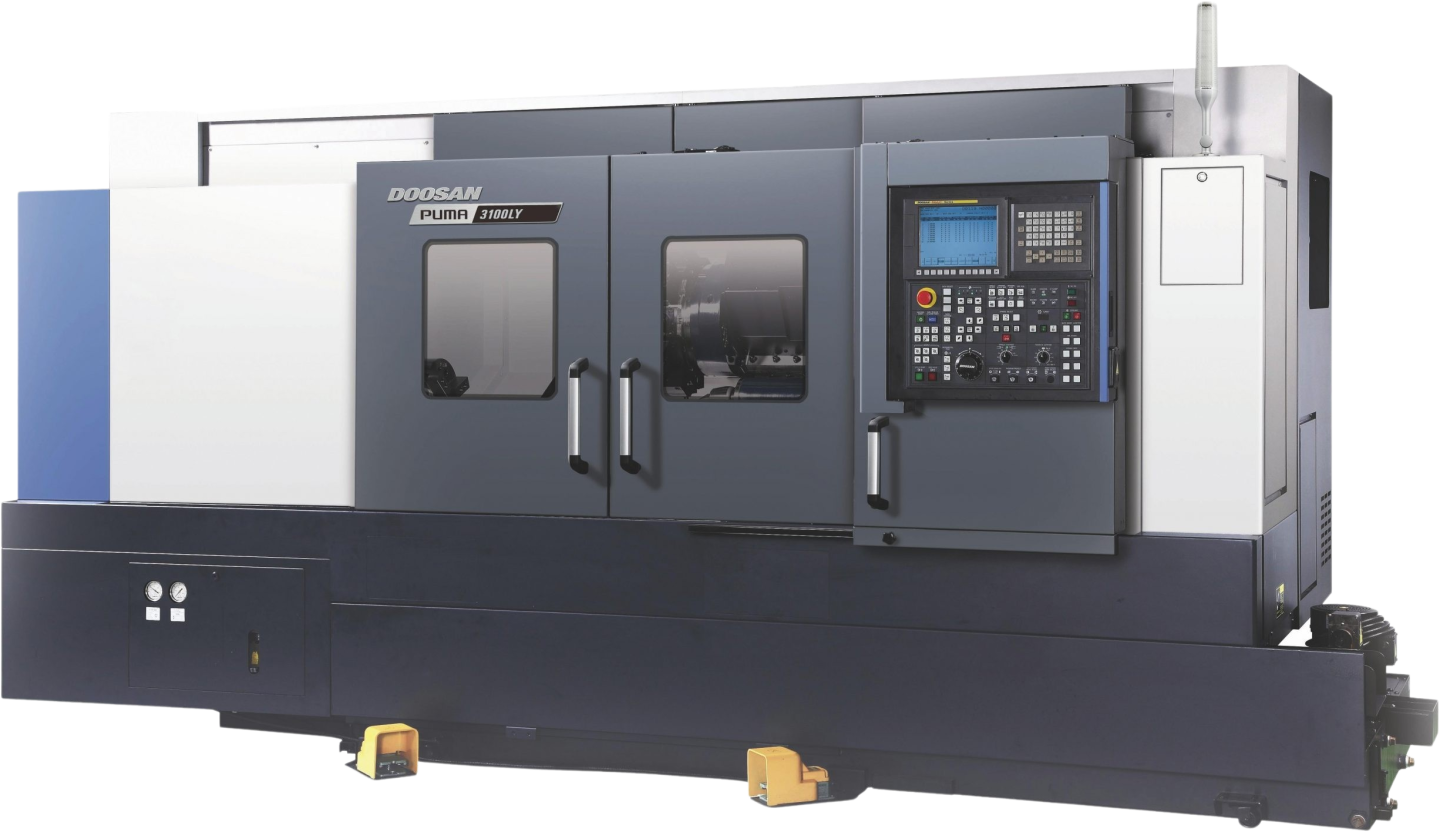

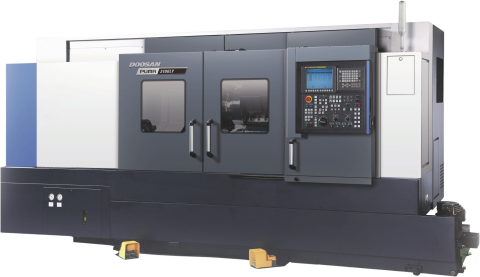

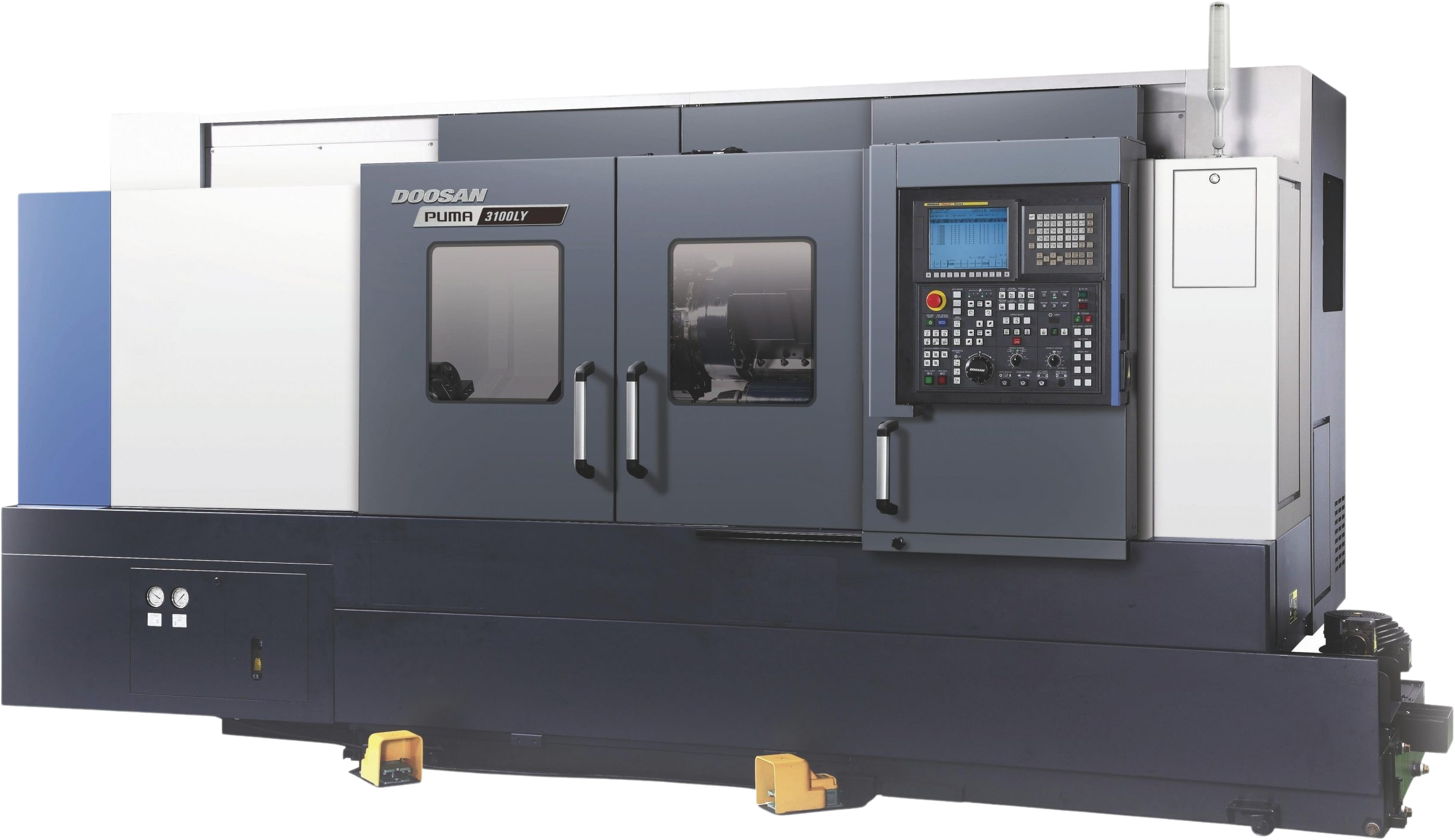

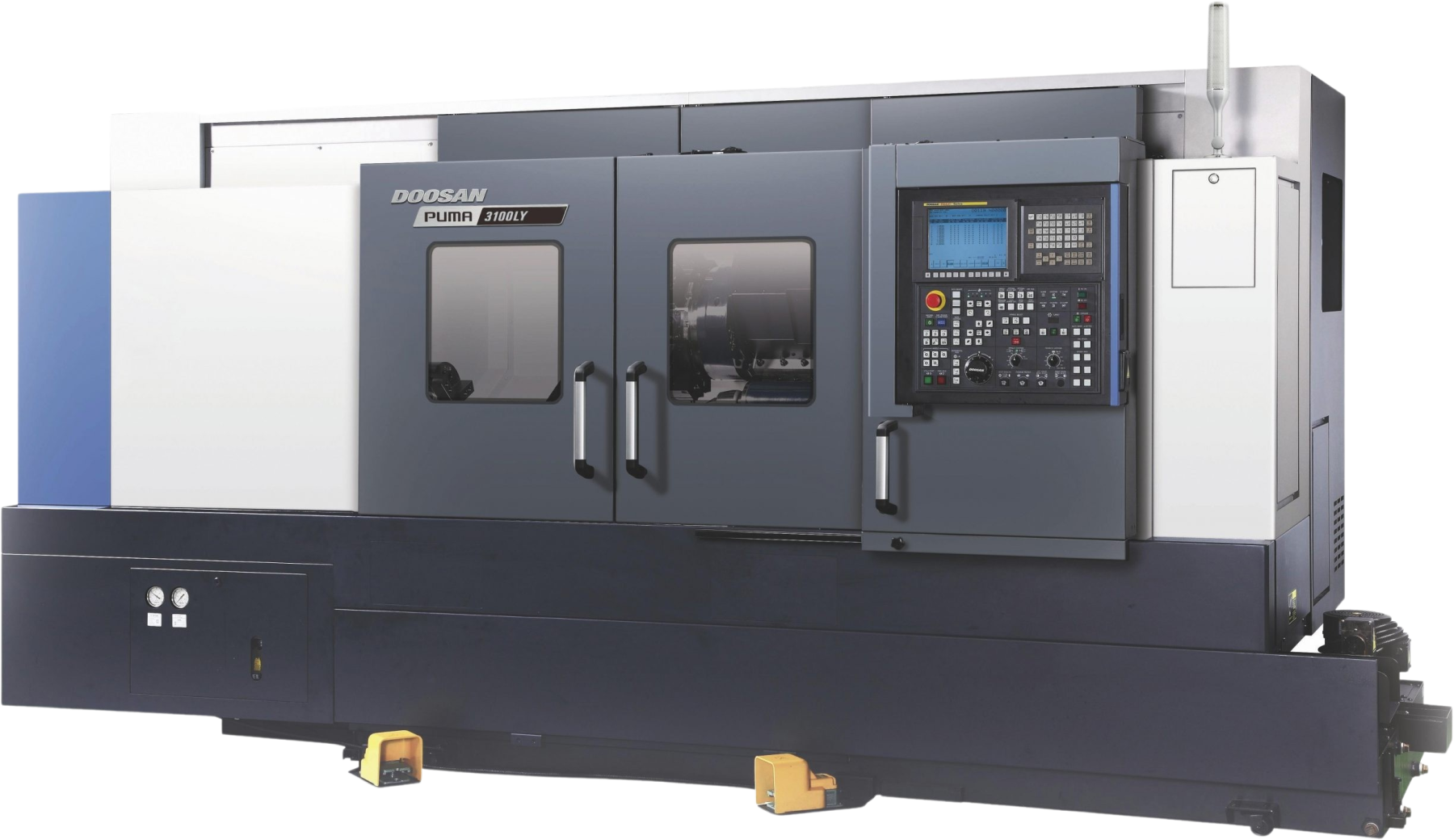

Image representative of Series and may not be the exact model
The Doosan Puma 3100LY is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan Puma 3100LY
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
