Doosan Puma 3100ULY
or copy link
|Chuck size||12 inch|
|Bar Capacity||102 mm|
|Max. Turning Diameter||420 mm|
|Max. Turning Length||3125 mm|
|X Axis Rapid Traverse||30 m/min|
|Z Axis Rapid Traverse||26 m/min|
|Max. Spindle Speed||2800 r/min|
|Max. Spindle Power||22 kW|
|Max. Spindle Torque||1123 N·m|
|No. of tool station||24|
|Rotary Tool r/min||5000 r/min|
|X Axis Travel distance||293 mm|
|Y Axis Travel distance||130 mm|
|Z Axis Travel distance||3190 mm|

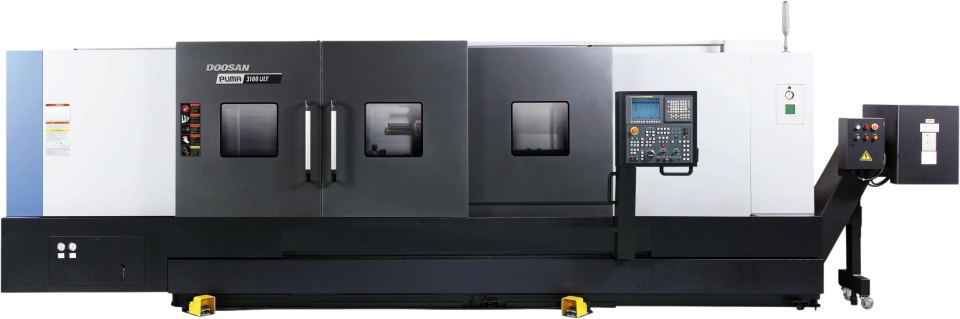

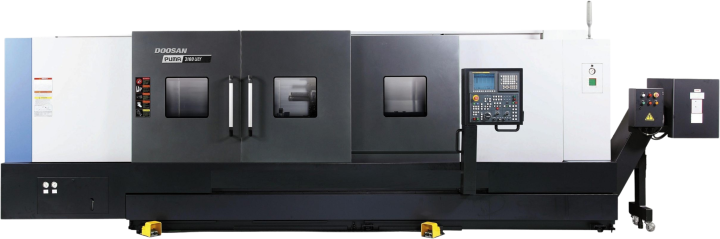

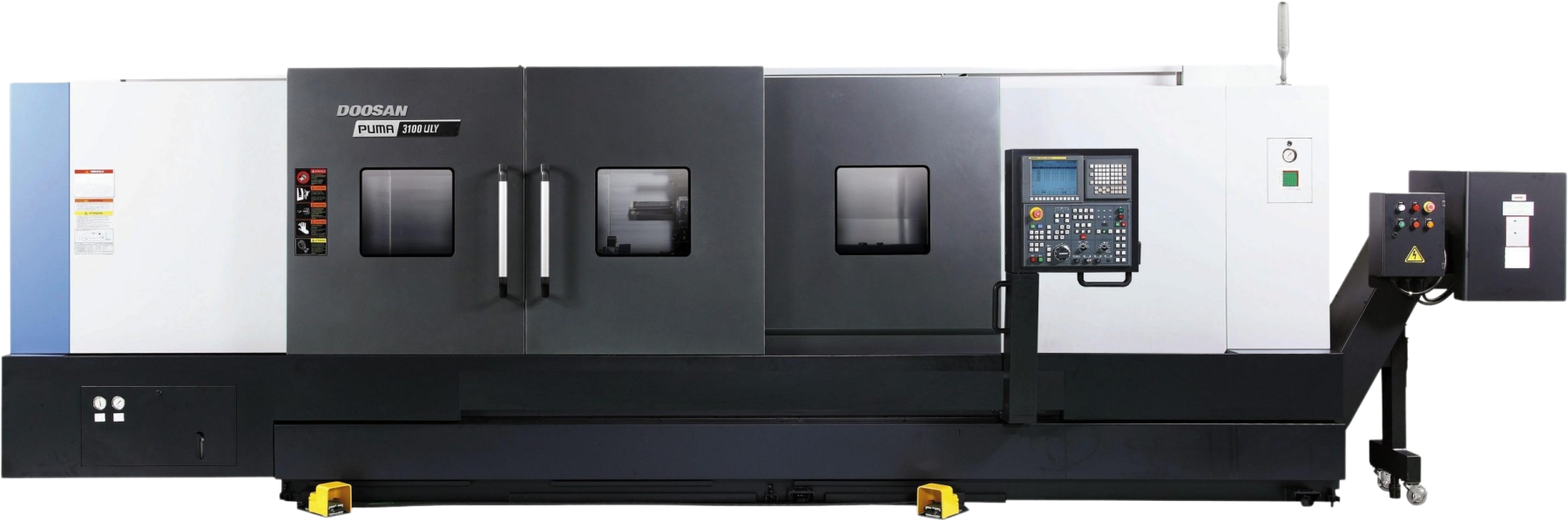

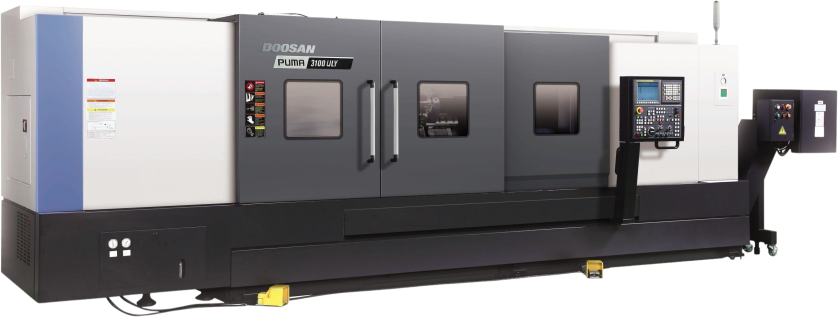

Image representative of Series and may not be the exact model
The Doosan Puma 3100ULY is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan Puma 3100ULY
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Why choose Mills CNC
Why choose Mills CNC
Mills CNC are much more than just a Doosan distributor, our services and support ensure that you can get exactly what you need from financing options to training for your team.
Not sure what you need? Mills CNC can help you incorporate your DNM 200 5AX into a turnkey or automated solution that works perfectly for your business.
CNC Automation Systems
From automated Cobots providing machine tending operations, to a bespoke system of sensors, controls and actuators to automate a manufacturing process, Mills CNC can provide an efficient, effective automation solution for you.
A turnkey solution is more than just a machine, it’s a full service solution that ensures that your CNC setup is perfectly tailored to your manufacturing needs. This can often include automation for a fully streamlined process.
Not Sure What You Need? Get In Touch
If you’re not certain what machine is right for your needs, then Mills can point you in the right direction. Tell us about your requirements, and we can suggest the right series, machine or additional options that will work best for you.
