Doosan Puma TT2500SY

DN Solutions (formerly Doosan) Puma TT2500SY Twin Turret Horizontal Lathe

Share this product

or copy link

Technical Specification

Chuck size 10 inch
Max. Turning Diameter 390 mm
Max. Turning Length 350 mm
X Axis Rapid Traverse 20 m/min
Z Axis Rapid Traverse 24 m/min
Max. Spindle Speed 3500 r/min
Max. Spindle Power 26 kW
Max. Spindle Torque 433.2 N·m
Max. Sub Spindle Speed 3500 r/min
Max. Sub Spindle Power 26 kW
No. of tool station 12
Rotary Tool r/min 5000 r/min
X Axis Travel distance 255 mm
Y Axis Travel distance 120 mm
Z Axis Travel distance 900 mm

Product Dimensions

Length 4050mm
Width 2210mm
Height 2480mm
Weight 12700kg

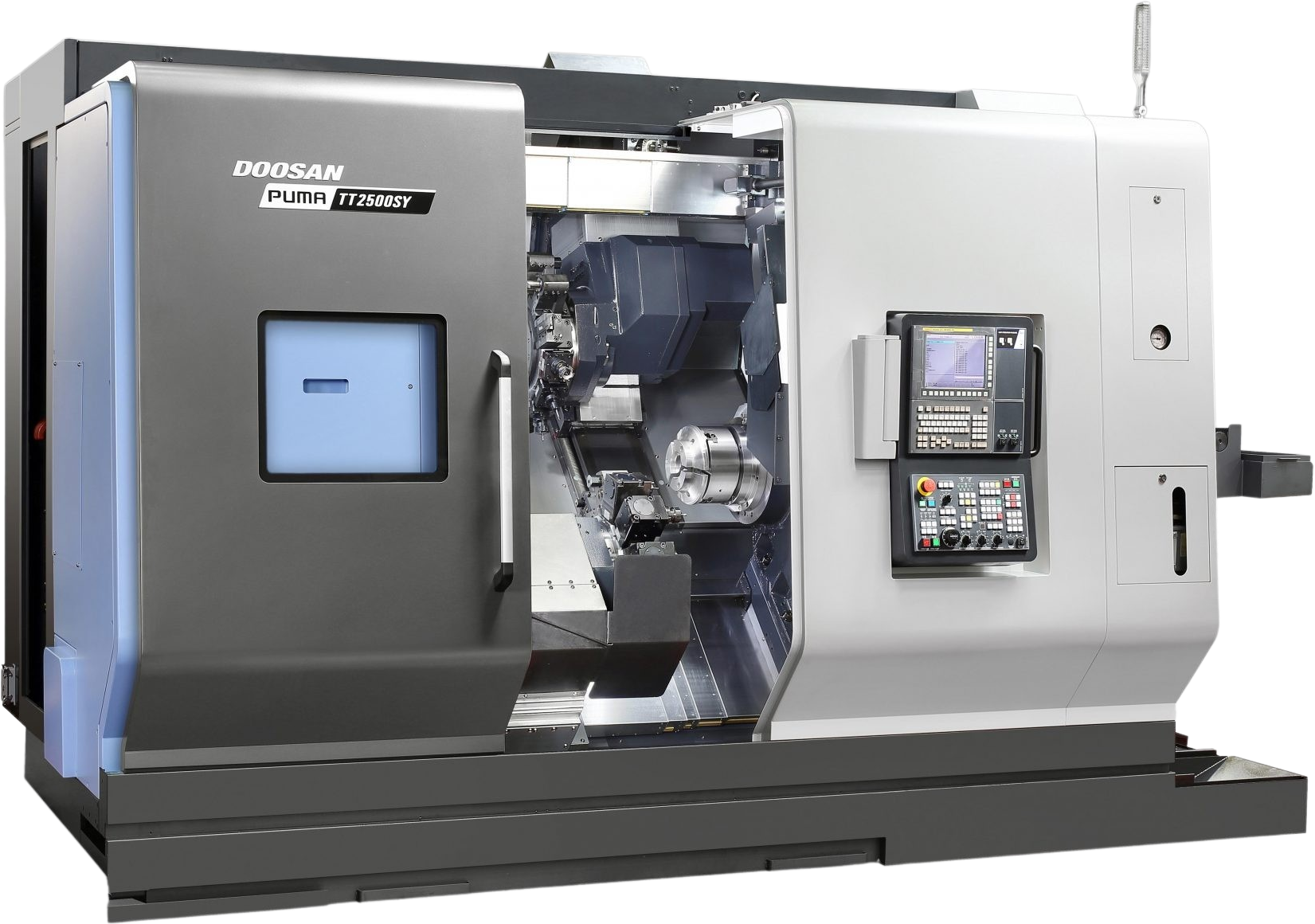

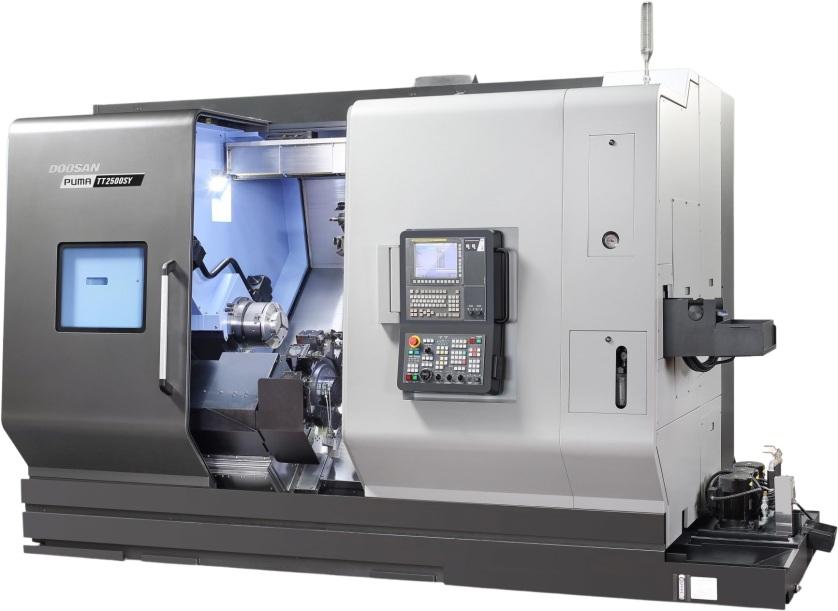

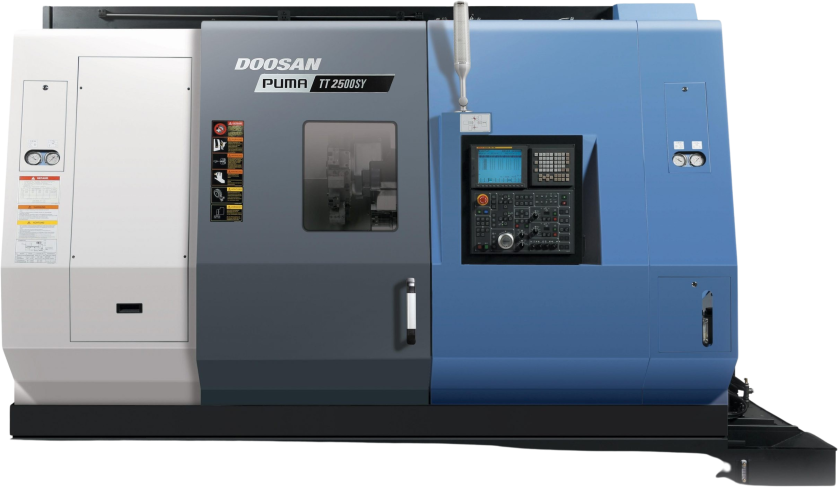

Image representative of Series and may not be the exact model

The Doosan Puma TT2500SY is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine

Talk to Mills about the Doosan Puma TT2500SY

Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
