Doosan DNM 5700

Share this product

or copy link

DOOSAN New DNM 5700L | high speed, high rigidity and suitability
DOOSAN New DNM 5700L | high speed, high rigidity and suitability

Technical Specification

X Axis Travel distance 1050 mm
Y Axis Travel distance 570 mm
Z Axis Travel distance 510 mm
X Axis Rapid Traverse 36 m/min
Y Axis Rapid Traverse 36 m/min
Z Axis Rapid Traverse 30 m/min
Max. Spindle Speed 12000 r/min
Max. Spindle Power 18.5 kW
Max. Spindle Torque 117.8 N·m
Table Length 1300 mm
Table Width 570 mm
Max. Table Weight 1000 kg
No. of tool station 60

Product Dimensions

Length 2413mm
Width 3100mm
Height 2985mm
Weight 6500kg

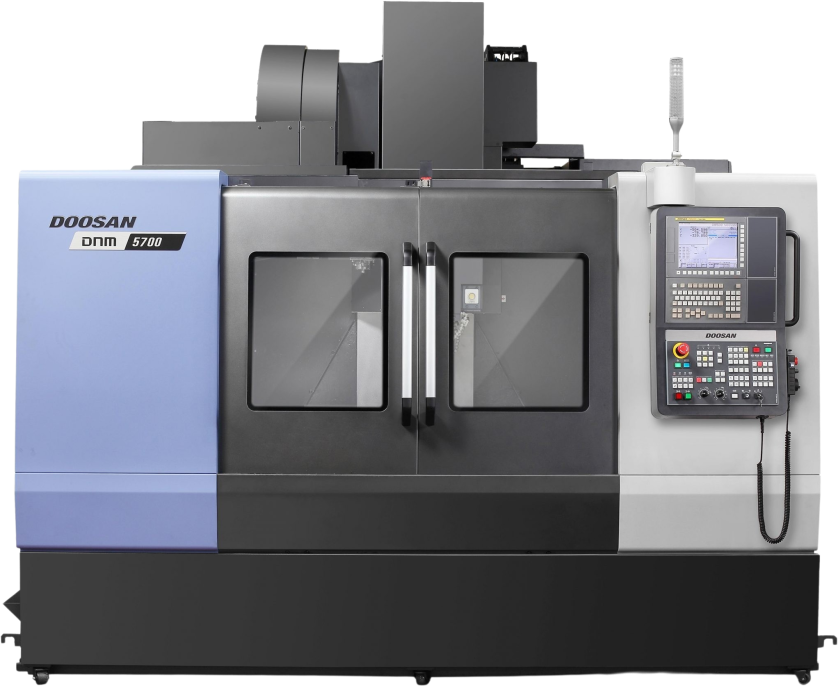

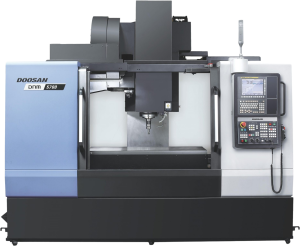

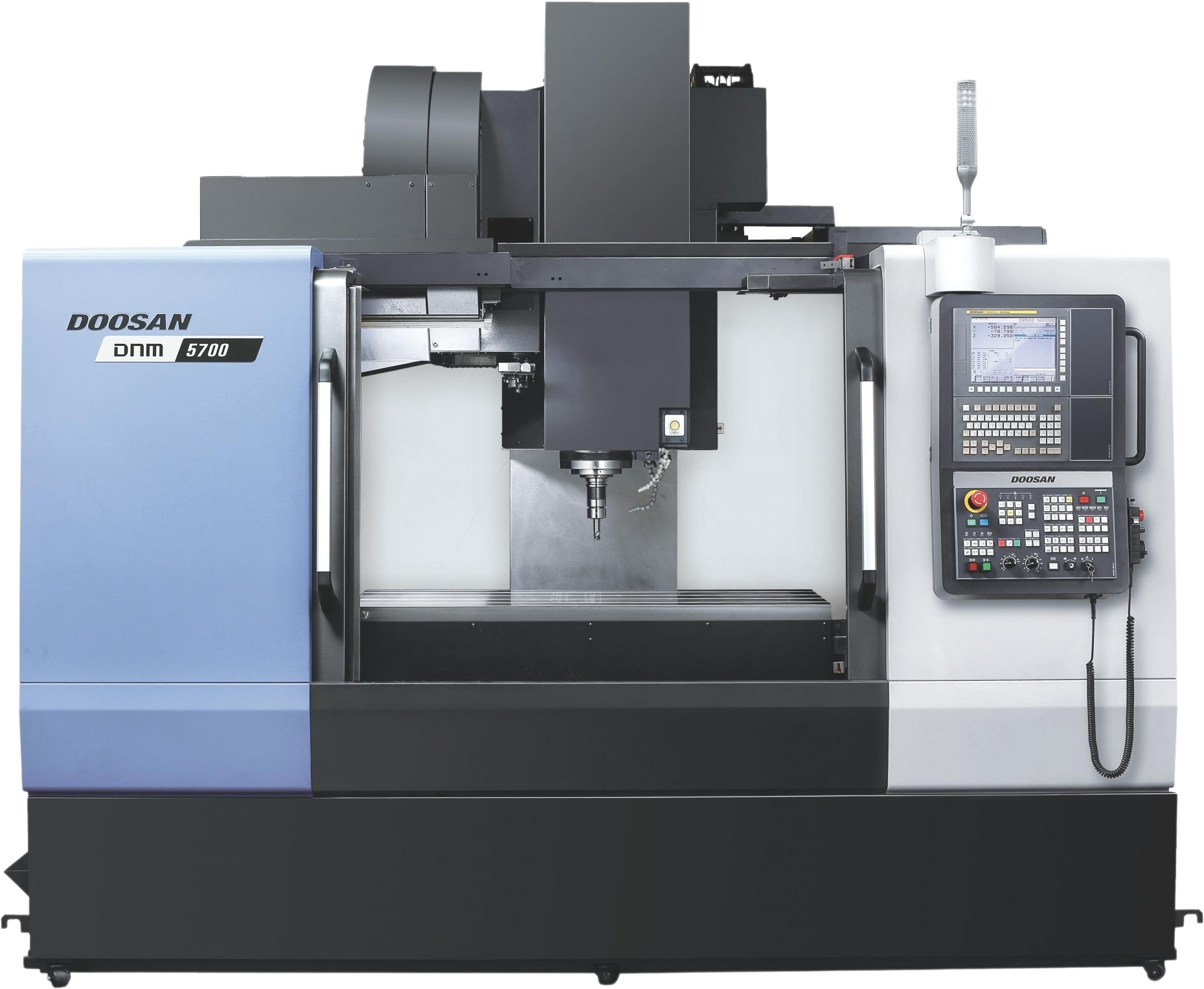

Image representative of Series and may not be the exact model

The Doosan DNM 5700 is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine

Talk to Mills about the Doosan DNM 5700

Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.

"*" indicates required fields

Related Case Studies

Operator standing by the doors of a DN Solutions DNM 5700 machining centre

A choice made pure and simple

DNM 5700 Vertical Machining Centre

Mills CNC supplied Pure Innovate Manufacturing, a leading project management and engineering solutions provider, with a new, high-performance DN Solutions’ DNM 5700 machining centre at the company’s brand new, modern and spacious Innovation facility in Wallingford, Oxfordshire.

interior of DNM vertical machining centre

The start of a new chapter

Doosan DNM 5700 Vertical Machining Centre

Precision valve-and-flange-type parts specialist, Helmrick Engineers Ltd in West Yorkshire invested in a DN Solutions DNM 5700 machining centre with the latest Fanuc 0iM control from Mills CNC as part of its growth plan to replace older machining centres.

No better place to see…no better place to be!

Doosan DNM 5700 Vertical Machining Centre

Doosan machining centres showcase Nikken’s latest and most advanced tooling technologies. The Nikken Innovation Centre located in Sheffield is impressive and at its heart is a Doosan DNM5700 Vertical Machining Centre supplied by Mills CNC. The machine is equipped with a Nikken CNC260 Alpha 21 single-axis rotary table to demonstrate their trunnion & wirelessly-linked tooling pre-setters.
