Doosan DNM 6700

No of Tool Stations: 40ea

Manual Guide i

Grease Pack

Share this product

or copy link

Technical Specification

X Axis Travel distance 1300 mm
Y Axis Travel distance 670 mm
Z Axis Travel distance 625 mm
X Axis Rapid Traverse 36 m/min
Y Axis Rapid Traverse 36 m/min
Z Axis Rapid Traverse 30 m/min
Max. Spindle Speed 12000 r/min
Max. Spindle Power 18.5 kW
Max. Spindle Torque 117.8 N·m
Table Length 1500 mm
Table Width 670 mm
Max. Table Weight 1300 kg
No. of tool station 40

Product Dimensions

Length 2597mm
Width 3350mm
Height 3120mm
Weight 8000kg

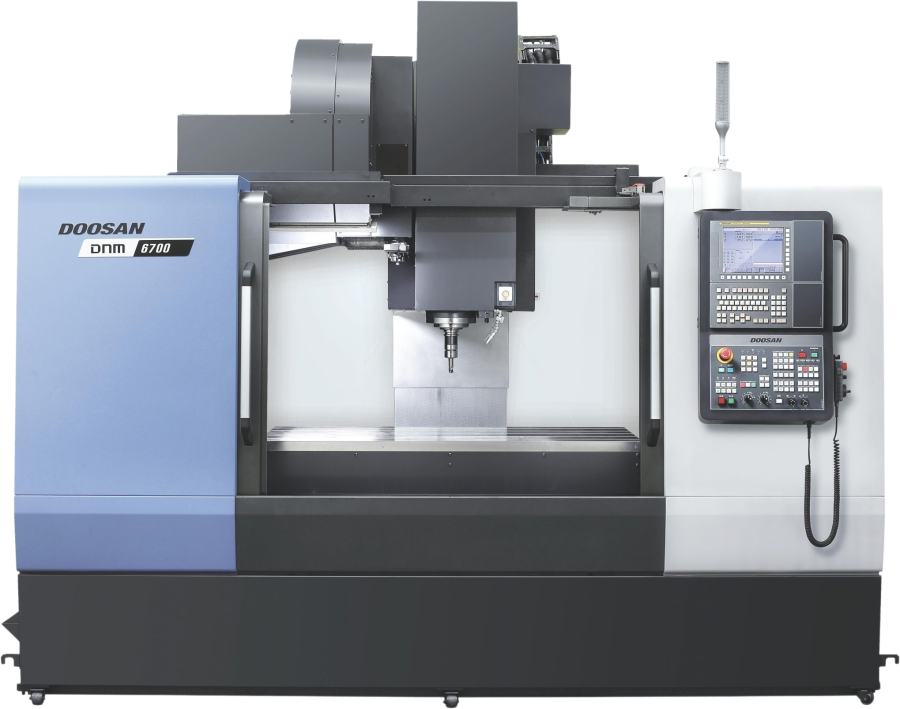

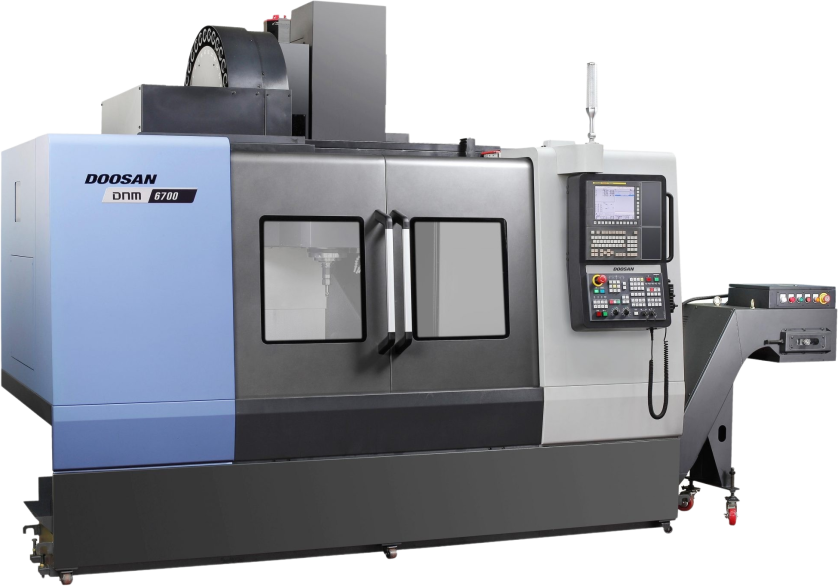

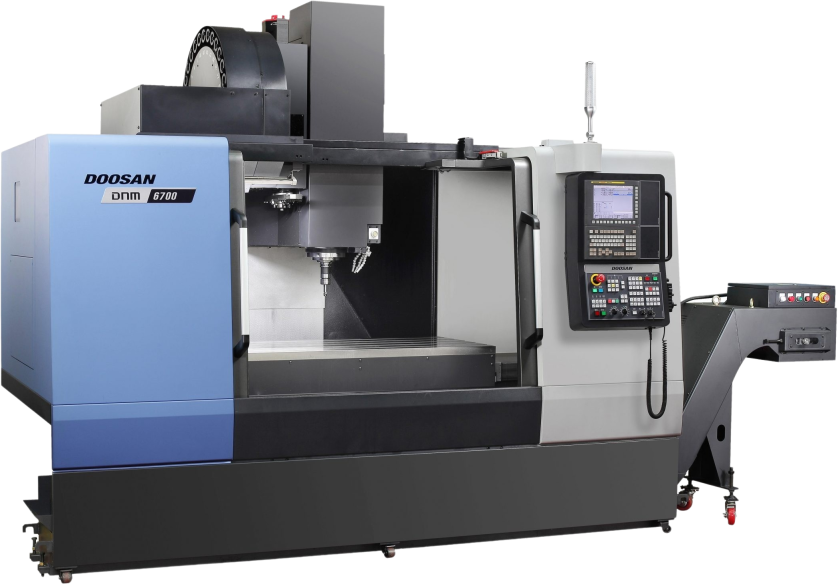

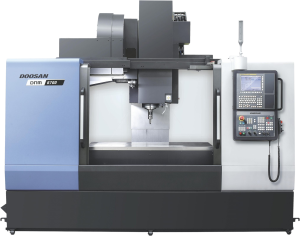

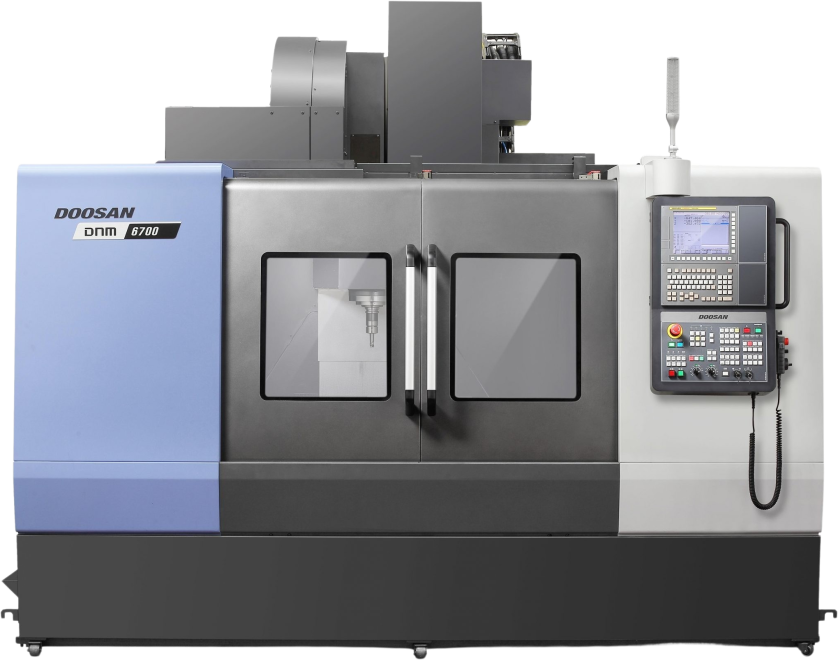

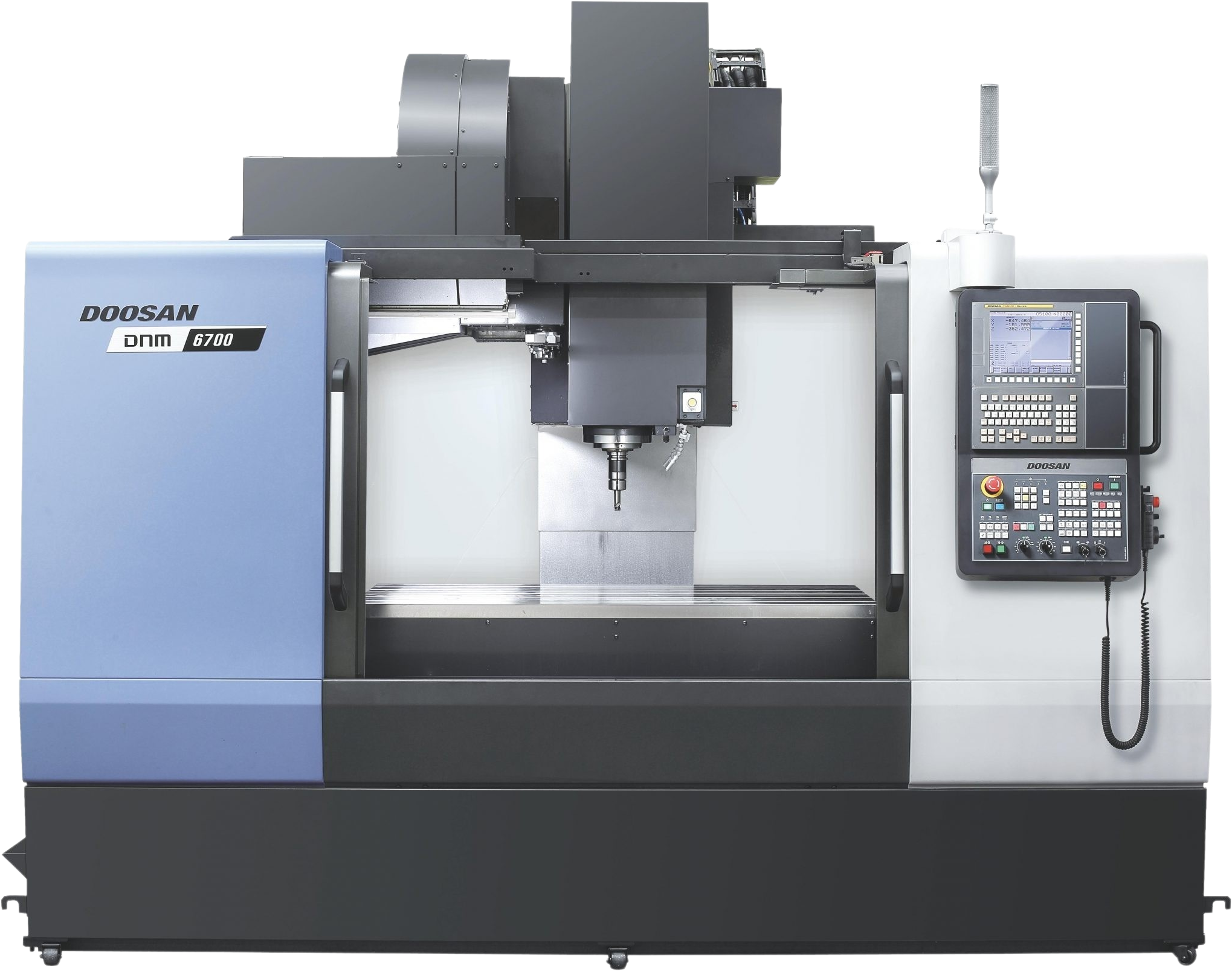

Image representative of Series and may not be the exact model

The Doosan DNM 6700 is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
