Doosan DNM 750 L II

Share this product

or copy link

Technical Specification

X Axis Travel distance 2160 mm
Y Axis Travel distance 762 mm
Z Axis Travel distance 650 mm
X Axis Rapid Traverse 24 m/min
Y Axis Rapid Traverse 24 m/min
Z Axis Rapid Traverse 24 m/min
Max. Spindle Speed 12000 r/min
Max. Spindle Power 18.5 kW
Max. Spindle Torque 118 N·m
Table Length 2160 mm
Table Width 760 mm
Max. Table Weight 1800 kg
No. of tool station 60

Product Dimensions

Length 3480mm
Width 4900mm
Height 3170mm
Weight 15000kg

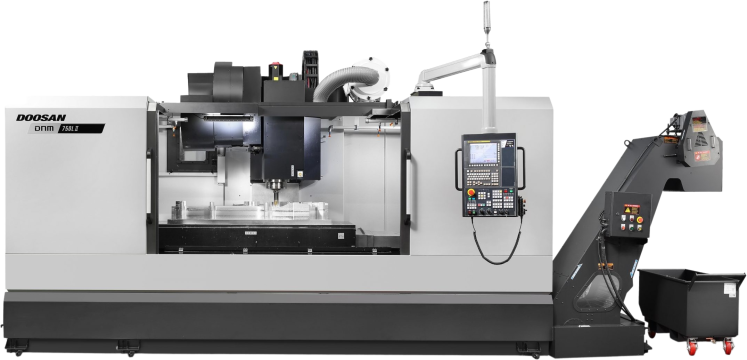

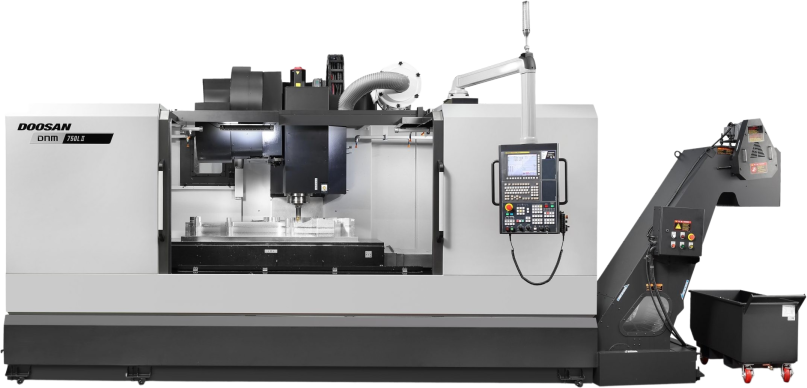

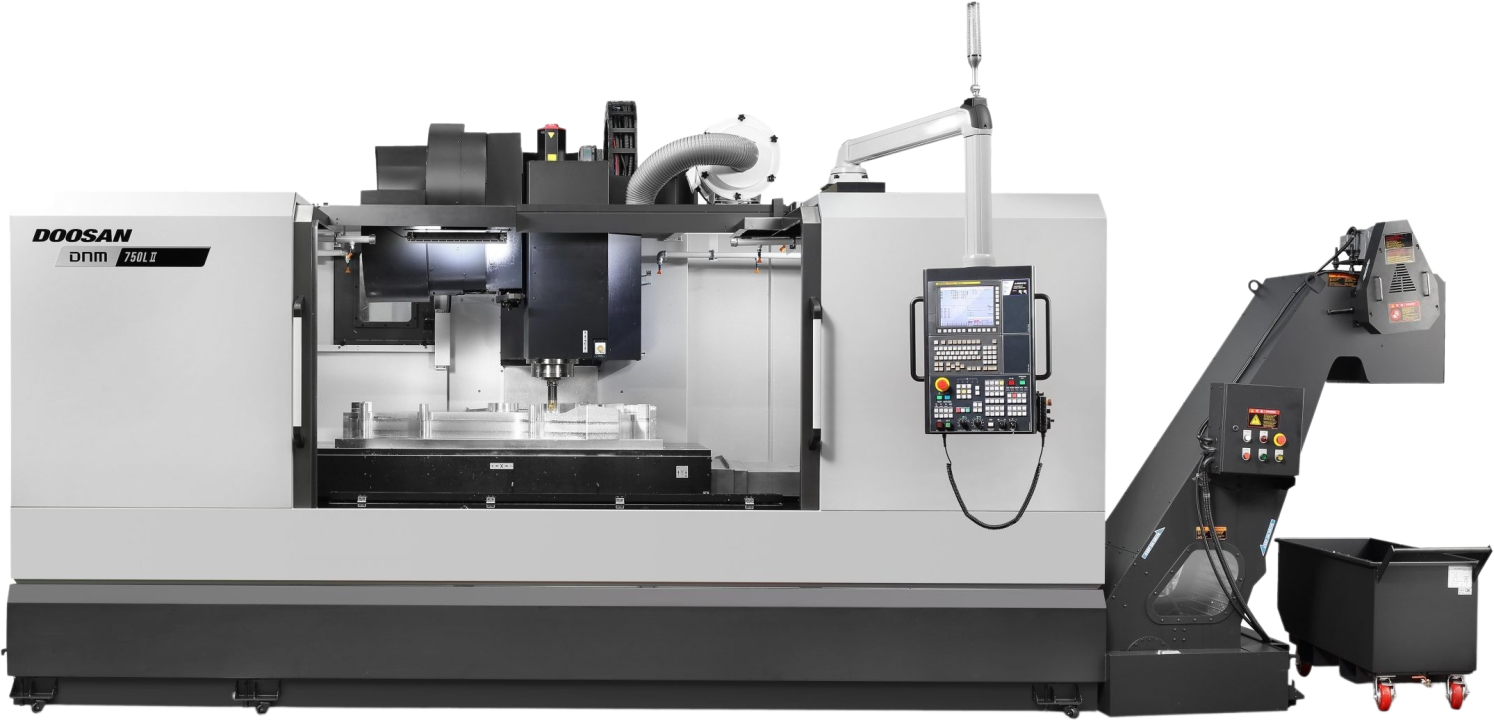

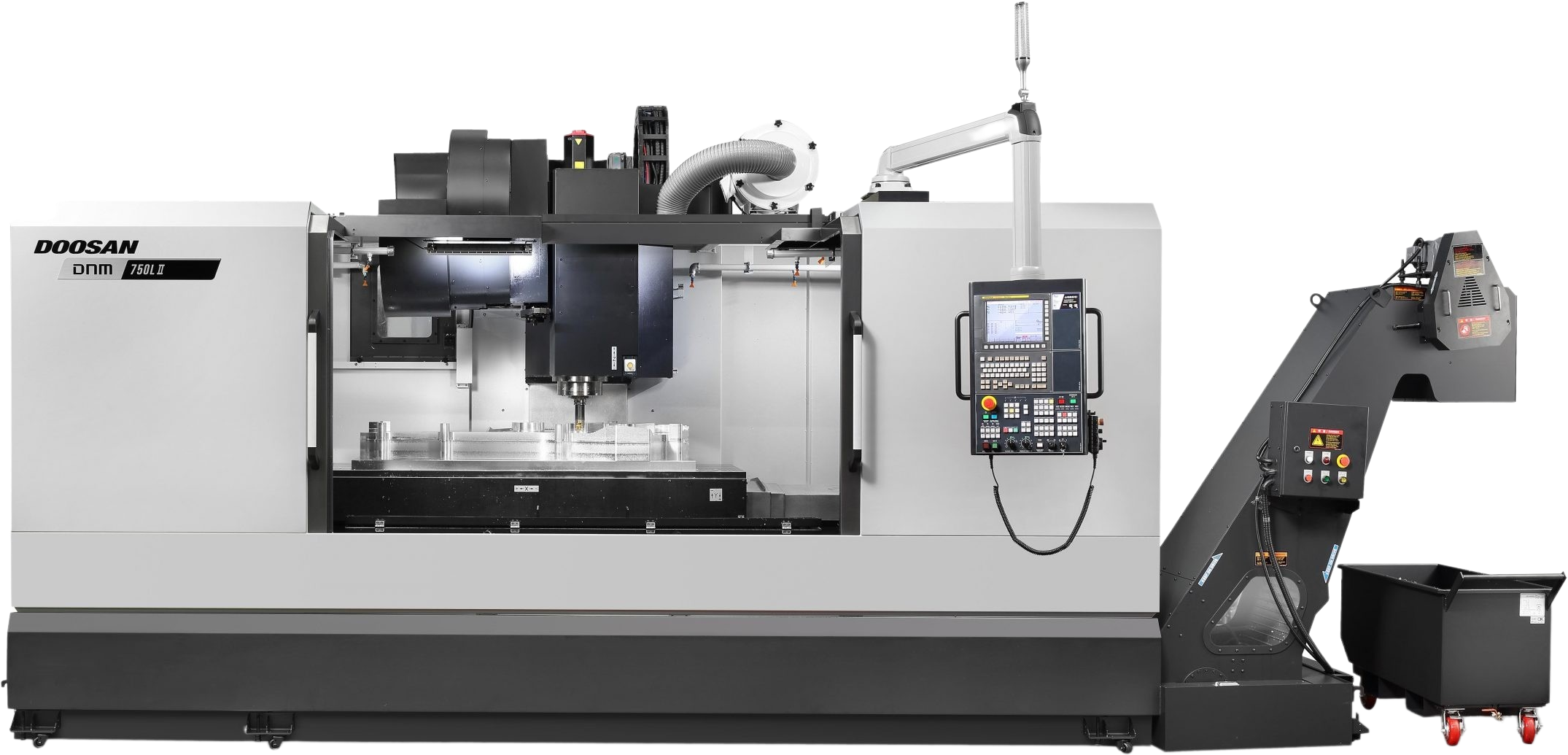

Image representative of Series and may not be the exact model

The Doosan DNM 750 L II is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
