Doosan Lynx 2100LSYA

Share this product

or copy link

Doosan Lynx 2100LSY CNC Horizontal Turning Center
Doosan Lynx 2100LSY CNC Horizontal Turning Center

Technical Specification

Chuck size 6 inch
Bar Capacity 51 mm
Max. Turning Diameter 300 mm
Max. Turning Length 510 mm
X Axis Rapid Traverse 30 m/min
Z Axis Rapid Traverse 36 m/min
X Axis Travel distance 205 mm
Y Axis Travel distance 105 mm
Z Axis Travel distance 560 mm
Max. Spindle Speed 6000 r/min
Max. Spindle Power 15 kW
Max. Spindle Torque 127 N·m
No. of tool station 12
Rotary Tool r/min 6000 r/min

Product Dimensions

Length 2880mm
Width 1711mm
Height 1921mm
Weight 4150kg

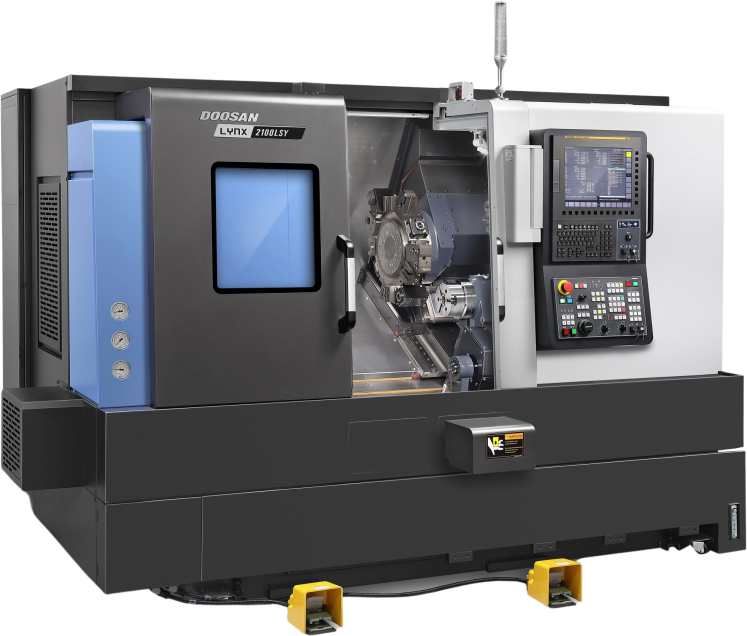

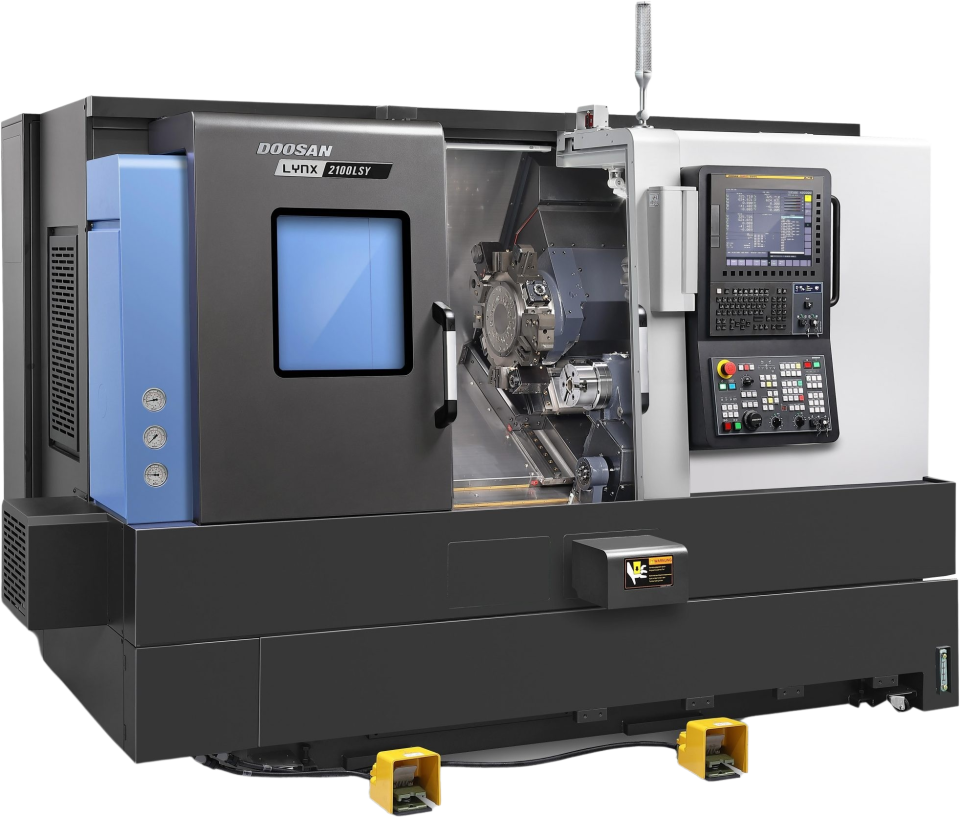

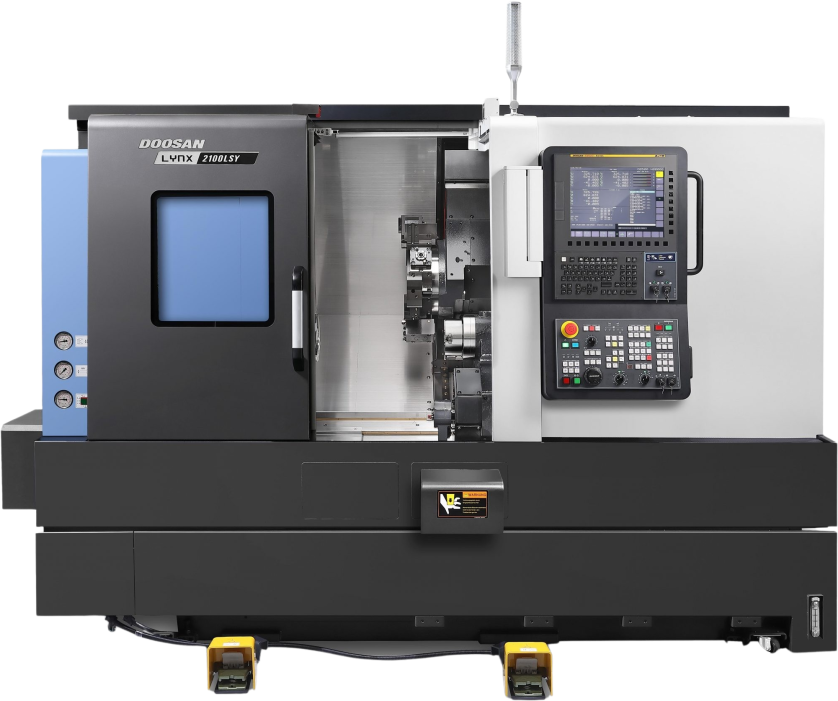

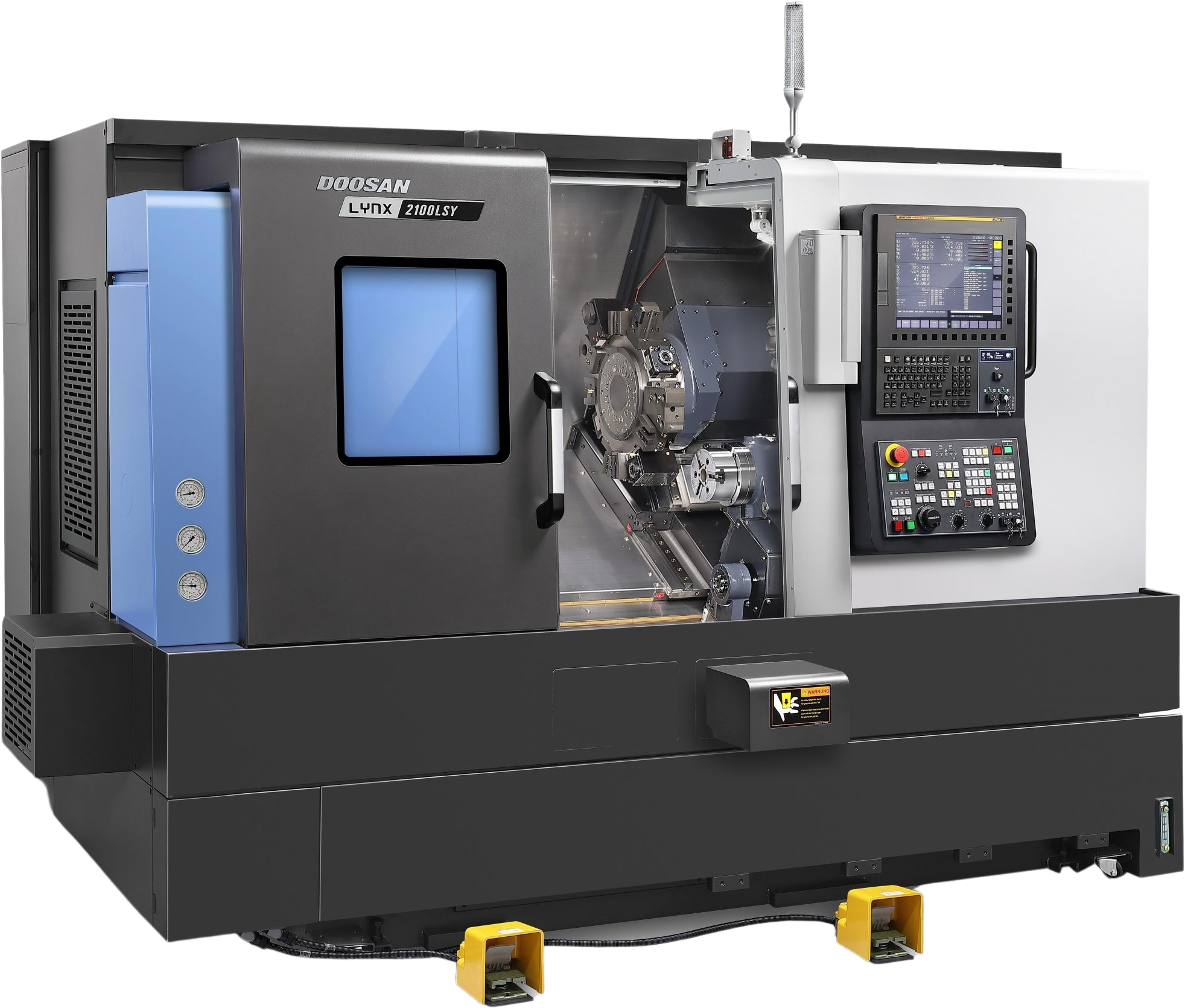

Image representative of Series and may not be the exact model

The Doosan Lynx 2100LSYA is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine

Talk to Mills about the Doosan Lynx 2100LSYA

Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.

"*" indicates required fields

Related Case Studies

Close up of an operator at the interior of a Doosan Lynx 2100LSYA Horizontal Single Turret Lathe

A break with tradition

Doosan Lynx 2100LSYA Horizontal Single Turret Lathe

Leading precision subcontract specialists, Sub-CNC Precision invests in its first new multitasking lathe from Mills CNC. With extensive in-house sliding- and fixed-head turning capacity and capabilities, this investment has been instrumental in helping the company win business from new and existing customers.


Latest investments critical to diversification and future growth plans

Doosan Lynx 2100LSYA Horizontal Single Turret Lathe

Wolverhampton based JTB Pressings, a subcontract specialist invested in a Doosan Lynx 2100LSYA Horizontal Single Turret Lathe primarily to machine precision parts with short cycle times, in high volumes for JCB – the British manufacturer of equipment for construction, agriculture, waste handling, and demolition.

Volz Engineering’s new precision subcontract machining operation has Doosan multi-tasking machine tools at its heart.

Lynx 2100LSY Horizontal Single Turret Lathe

To give its machining operation a competitive edge, Greater Manchester-based, Volz Engineering invested in two new Doosan machines, each supplied with integrated automation, from Mills CNC. The first machine – a Lynx 2100LSY turning centre with an integrated Hydrafeed Multi-feed 65 short magazine bar loader has significantly increased productivity potential.
