Doosan Lynx 2600Y
or copy link
Technical Specification
Chuck size | 10 inch |
---|---|
Bar Capacity | 81 mm |
Max. Turning Diameter | 380 mm |
Max. Turning Length | 610 mm |
X Axis Rapid Traverse | 30 m/min |
Z Axis Rapid Traverse | 30 m/min |
X Axis Travel distance | 250 mm |
Y Axis Travel distance | 105 mm |
Z Axis Travel distance | 680 mm |
Max. Spindle Speed | 3500 r/min |
Max. Spindle Power | 18.5 kW |
Max. Spindle Torque | 403 N·m |
No. of tool station | 12 |
Rotary Tool r/min | 5000 r/min |
Product Dimensions
Length | 3425mm |
---|---|
Width | 1920mm |
Height | 2095mm |
Weight | 5750kg |

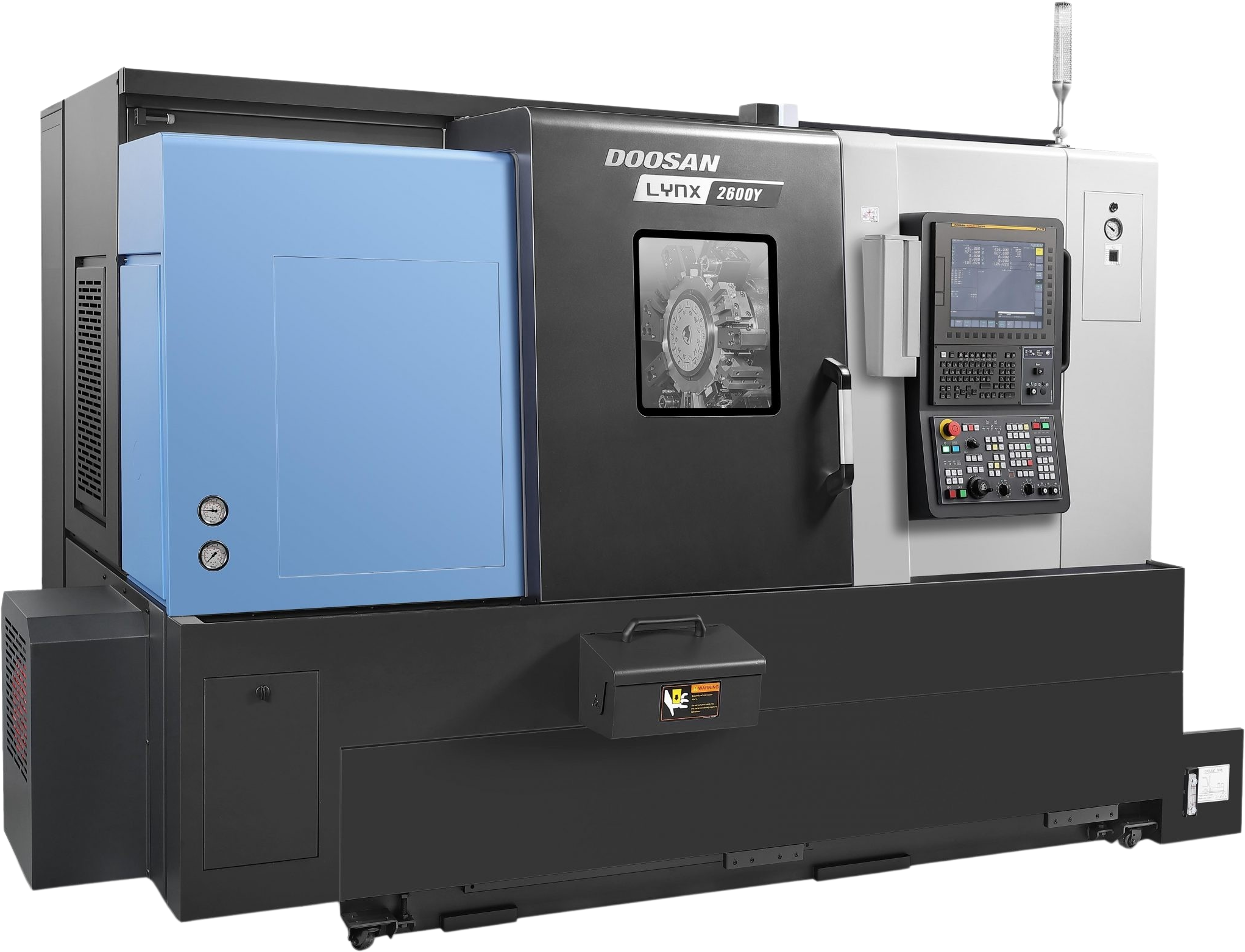

Image representative of Series and may not be the exact model
The Doosan Lynx 2600Y is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
