Puma TL2000
DN Solutions (formerly Doosan) Puma TL2000 Twin Turret Horizontal Lathe
or copy link
Technical Specification
| Chuck size | 8 inch |
|---|---|
| Max. Turning Diameter | 370 mm |
| Max. Turning Length | 600 mm |
| X Axis Rapid Traverse | 20 m/min |
| Z Axis Rapid Traverse | 24 m/min |
| Max. Spindle Speed | 5000 r/min |
| Max. Spindle Torque | 476.3 N·m |
| No. of tool station | 12 |
| X Axis Travel distance | 250 mm |
| Z Axis Travel distance | 650 mm |
Product Dimensions
| Length | 3250mm |
|---|---|
| Width | 2118mm |
| Height | 1930mm |
| Weight | 7200kg |

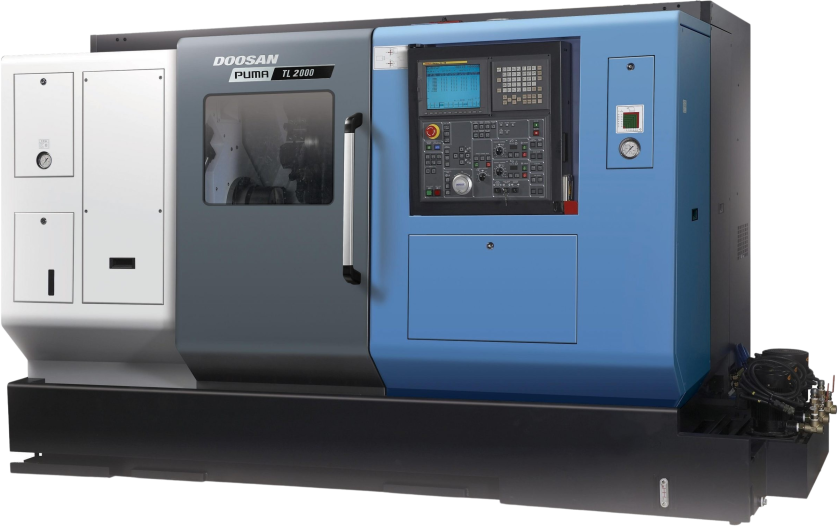

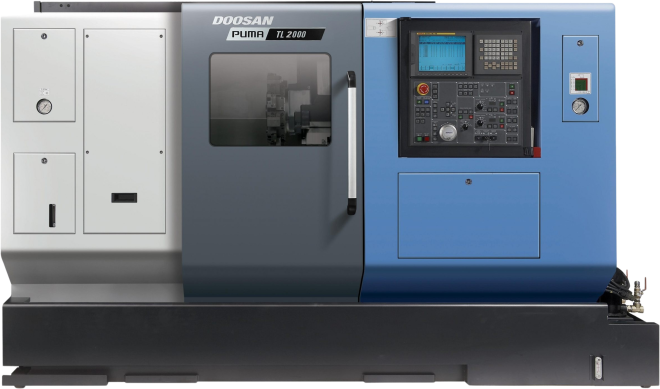

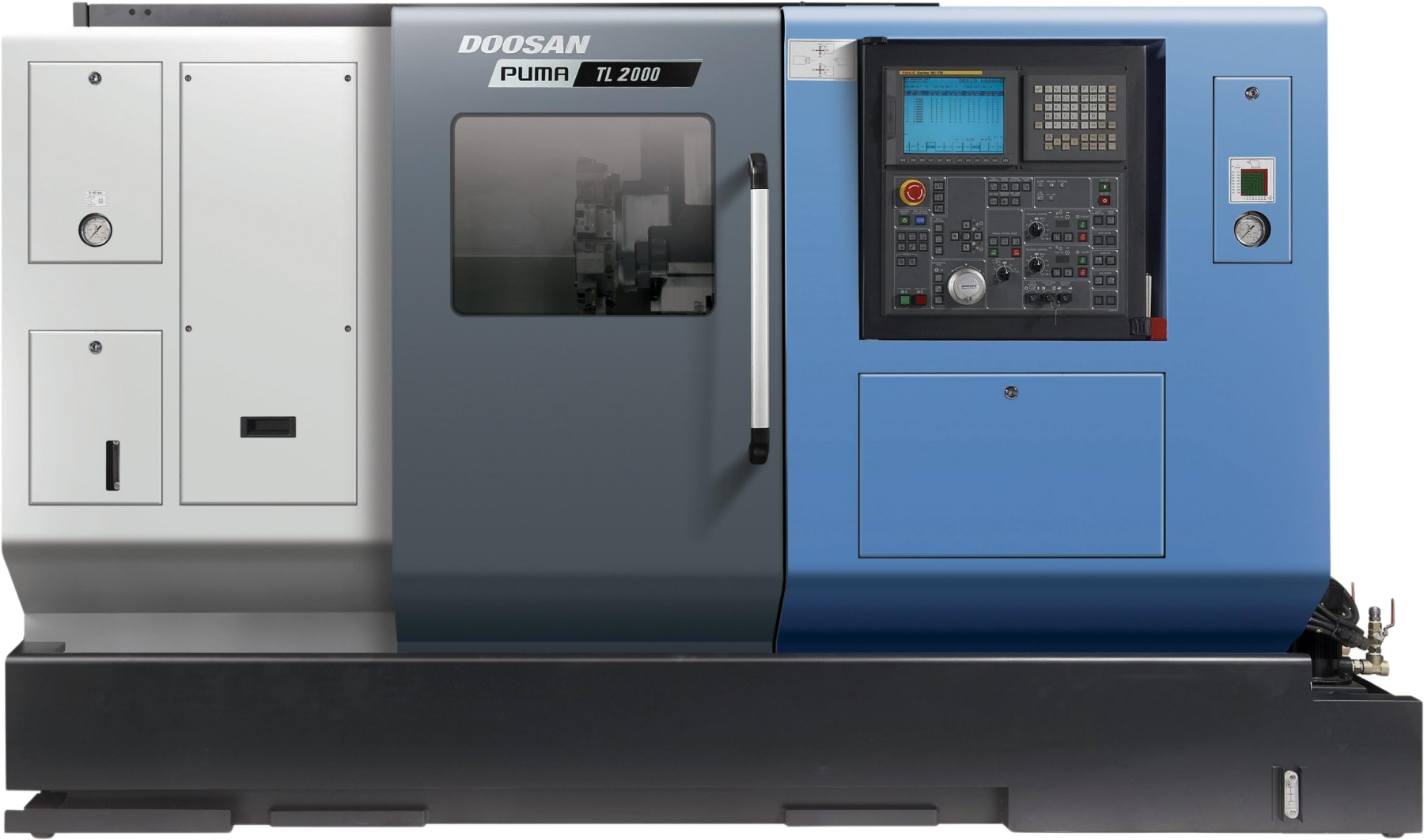

Image representative of Series and may not be the exact model
The Puma TL2000 is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Puma TL2000
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Doosan lathes are first choice.
Doosan Puma TL2000 Twin Turret Horizontal CNC Lathe
Yorkshire based Hunprenco, a manufacturer of plungers and coolers for glass containers invests in 15 Doosan lathes as the food, beverage, pharmaceutical, cosmetics & perfumery industries drive demand for glass containers. The company invests regularly in the latest manufacturing technologies to maintain a competitive edge, which includes six TL 2000 twin-turret turning centres.
